Professional Double Layers Cement Paper Bag Making Machines For Making Paper Bags

Name: Professional Double Layers Cement Paper Bag Making Machines For Making Paper Bags
Brand: Tecon
Price: 1 USD

Brand Name : Tecon

Model Number : HD4913

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T or L/C

Supply Ability : 16Pcs Per Year

Delivery Time : 3-5 months after received your payment

Packaging Details : Wooden case

Bearing : NSK, Japan

Other : Servo System Control or PLC Control Available;

Bag Type : For Cement, Chemicals, Foods, Tea, etc.

Printing Color : Multiple Colors

Main drive motor : 33kw

Warrantly : 12 Months

Machine Type : High Precision

Drive : Motor Driven

Working hour : 22 hours/day

Air consumption : 1,100L/min

Total Weight : 25T

Contact Now

Newest Professional Double Layers Paper Bags Making Machine for Cement

HD4913 Bottomer Machine Operating condition

Valve sheet length	100~300mm(adjustable)
Valve sheet width	120~240mm(adjustable)
Main drive motor	33kw
Total weight	25T
Size of whole set	22m×1.8m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm

Composing of the production line HD4913 Bottomer Machine

Name	Quantity
High speed feeder machine	1
Perforation machine	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1
Vacuum-pump	1

Usage and Characteristics
It is used for producing valve cement paper bags with printing. The main motor adopts frequency conversion motor to save more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accurate and the error smaller. It adopts advanced computer to adjust length more freely and accurately.It can make one printed bag and three unprinted bags one time, or four unprinted bags one time in allowed width.

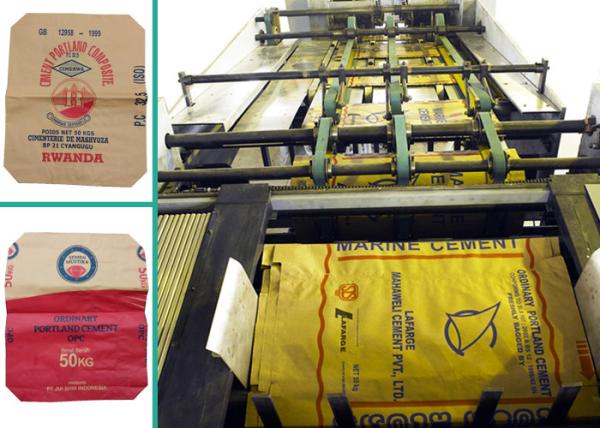

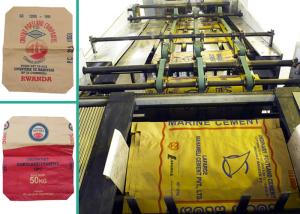

The Detail of Bottomer Machine

Professional Double Layers Cement Paper Bag Making Machines For Making Paper Bags

Automatic valve paper bag machine for cement,chemicals and food

Professional Double Layers Cement Paper Bag Making Machines For Making Paper Bags

Welcome to contact us or visit our factory. We are ready here.
